374mm(14 3/4") TCI Rock Drilling Bit Tricone Hard Rock Drilling Bit For Water Well Drilling

起源の場所:

河北省、中国

証明:

ISO9001

連絡ください

引金を求めてください

製品詳細

形成型:

粘土,砂,シェール

ノズルの種類:

修理済み

仕様:

マトリックスまたは鋼のボディ

市場:

グローバル

アドバンテージ:

耐久性と高効率性

IADC:

地質学に基づく

ベアリングの種類:

ジャーナルベアリング

支払いと送料の条件

価格

交渉可能

パッケージの詳細

顧客のニーズに応じて

受渡し時間

5~15日

支払条件

T/T

供給の能力

50000個/月

14 3/4”IADC 517 Tri-Cone Bit Tricone Bit Soft Rock Drilling Bits For Water Well Drilling

最高の価格を入手する

ビデオ

374mm(14 3/4") TCI Rock Drilling Bit Tricone Hard Rock Drilling Bit For Water Well Drilling

最高の価格を入手する

Small Size Tricone Bit Package

最高の価格を入手する

20インチ Tciトライコンビット,IADC535トライコンドリルビット新しい鍛造水ドリリングローター

最高の価格を入手する

連絡ください

今連絡してください

製品説明

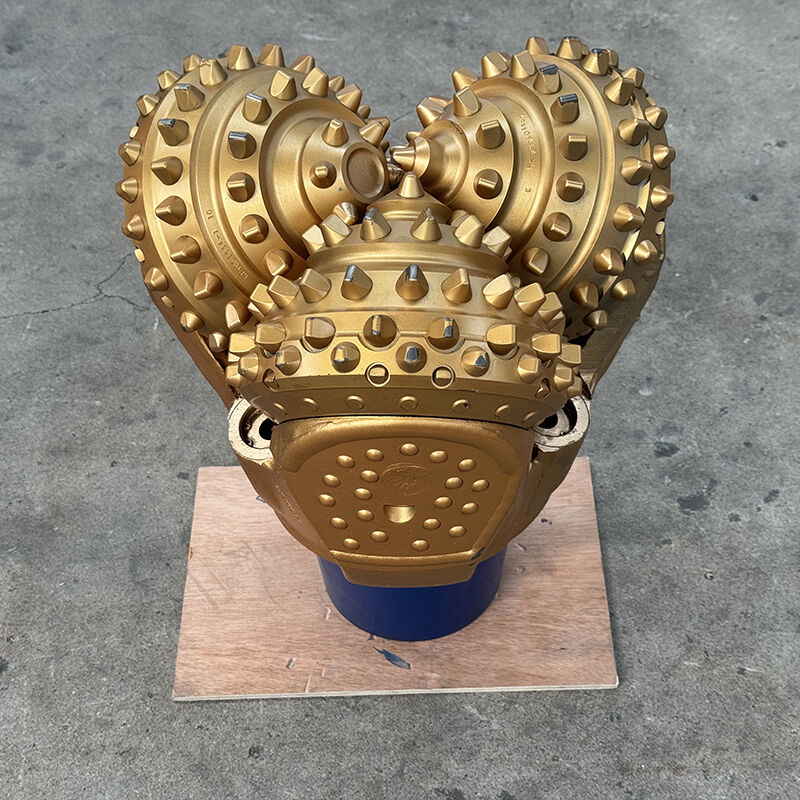

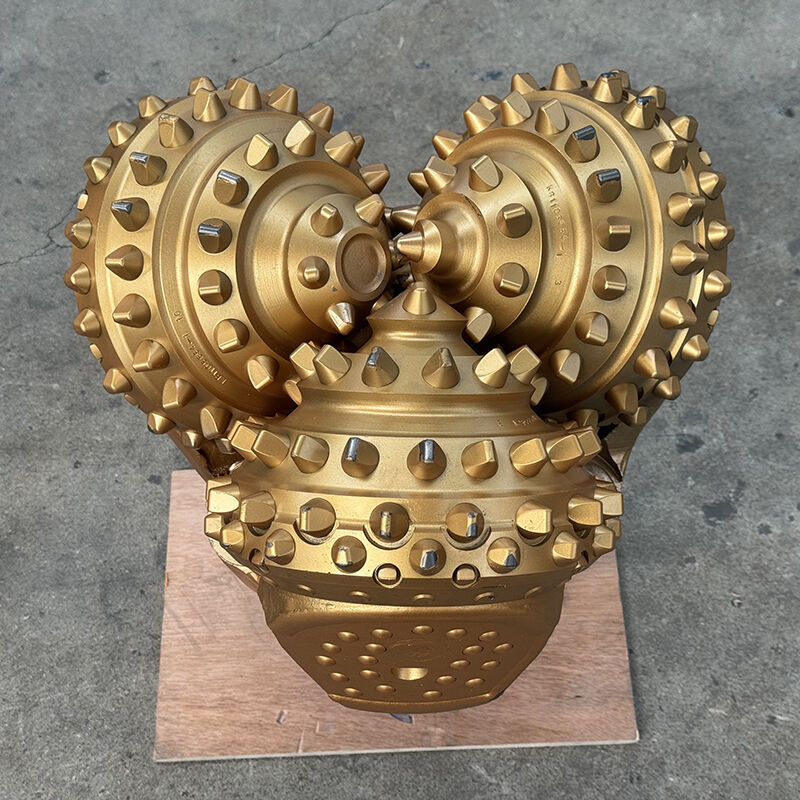

374mm(14 3/4") TCI Rock Drilling Bit Tricone Hard Rock Drilling Bit For Water Well Drilling

The three cone drill bit consists of more than 20 components such as cutting structure, bearing structure, locking element, oil storage sealing device, nozzle device, etc. Its structure mainly includes four parts: tooth palm body, cone body, bearing system, and nozzle. The hydraulic system is an important component of the structural design of a three cone drill bit, and the rationality of the hydraulic system design directly affects the service life and mechanical drilling speed of the drill bit.

Under the action of drilling pressure and drill string rotation, the three cone drill bit crushes and eats into the rock with its teeth, while producing a certain degree of sliding and shearing of the rock. When the roller cone rolls at the bottom of the well, the teeth on the roller cone successively impact and press into the formation. This effect can crush a part of the rock at the bottom of the well, and at the same time, the shear effect caused by the sliding of the roller cone can cut off the remaining rock between the teeth. The main ways in which the three cone drill bit breaks rocks are impact and crushing. The impact force and static pressure generated by its longitudinal oscillation all lead to the impact and crushing effect of the teeth on the soil; The auxiliary methods are sliding and shearing, and the radial and tangential movement on the teeth causes a shearing effect underground, fracturing the rock between the teeth; The erosion effect of jet is the impact of a rapid jet sprayed from a nozzle on the rock underground, assisting in the fragmentation of the rock

PRODUCT SPECIFICATIONS
product name	10 5/8 inch CA542 TCI tricone bit
size	10 5/8 inch,269.9mm
model number	CA535
series	CA
tooth type	TCI
bearing	Open bearing bit
application	Mining,water well,oil well,HDD,exploration,etc
weight	78kg
certificate	SY/T5164,ISO9001:2008
RECOMMENDED ROCK FORMATION
medium soft with low compressive strength and harder abrasive stringers,such as shale,hard gypsolyte,soft limestone,sandstone and dolomite with stringers,etc.
RECOMMENDED DRILLING PARAMETERS FOR APPLICATION
Type&IADC code	415	435	445	515,525	535,545	615,625	635,645	735,835
WOB(KN/mm)	0.35~0.90	0.35~0.95	0.35~1.00	0.35~1.05	0.35~1.05	0.35~1.05	0.70~1.20	0.70~1.20
RPM(r/min)	140~70	140~60	140~60	120~50	110~40	80~40	70~40	70~40

Company Profile

Crossing Bit, a leading manufacturer of PDC bits and tricone bits in northern China, has exported its high-quality drill bits to more than 30 countries, demonstrating its strong market influence and exceptional product strength.

Crossing Drilling Tools has not only established a sterling reputation in the drilling, construction, HDD (horizontal directional drilling), exploration, water well, geothermal, mining, and oil & gas industries, but has also gained widespread recognition from customers for its exceptional product reliability and quality. We are committed to developing and producing a range of high-quality tools, including tricone bits, PDC bits, tricone cutters (single rollers), PDC reamers, drag bits, and HDD hole openers, to meet the diverse needs of our customers.

Our meticulously designed PDC bits are specifically optimized for directional drilling. With exceptional stability, durability, and "directional" friendliness, they are able to precisely maintain the bit's position in narrow and complex pay zones, ensuring smooth drilling operations.

This unique steerable bit technology, combined with high ROP (rate of penetration), sets Crossing Bit apart from the competition and establishes it as a leader in the industry.
