14 3/4”IADC 517 Tri-Cone Bit Tricone Bit Soft Rock Drilling Bits For Water Well Drilling

起源の場所:

河北省、中国

証明:

ISO9001

連絡ください

引金を求めてください

製品詳細

ノズルの種類:

修理済み

市場:

グローバル

アドバンテージ:

耐久性と高効率性

コーンサイズ:

さまざまなサイズをご用意

IADC:

地質学に基づく

タイプ:

TCI または鋼歯

ベアリングの種類:

ジャーナルベアリング

支払いと送料の条件

価格

交渉可能

パッケージの詳細

顧客のニーズに応じて

受渡し時間

5~15日

支払条件

T/T

供給の能力

50000個/月

14 3/4”IADC 517 Tri-Cone Bit Tricone Bit Soft Rock Drilling Bits For Water Well Drilling

最高の価格を入手する

ビデオ

374mm(14 3/4") TCI Rock Drilling Bit Tricone Hard Rock Drilling Bit For Water Well Drilling

最高の価格を入手する

Small Size Tricone Bit Package

最高の価格を入手する

20インチ Tciトライコンビット,IADC535トライコンドリルビット新しい鍛造水ドリリングローター

最高の価格を入手する

連絡ください

今連絡してください

製品説明

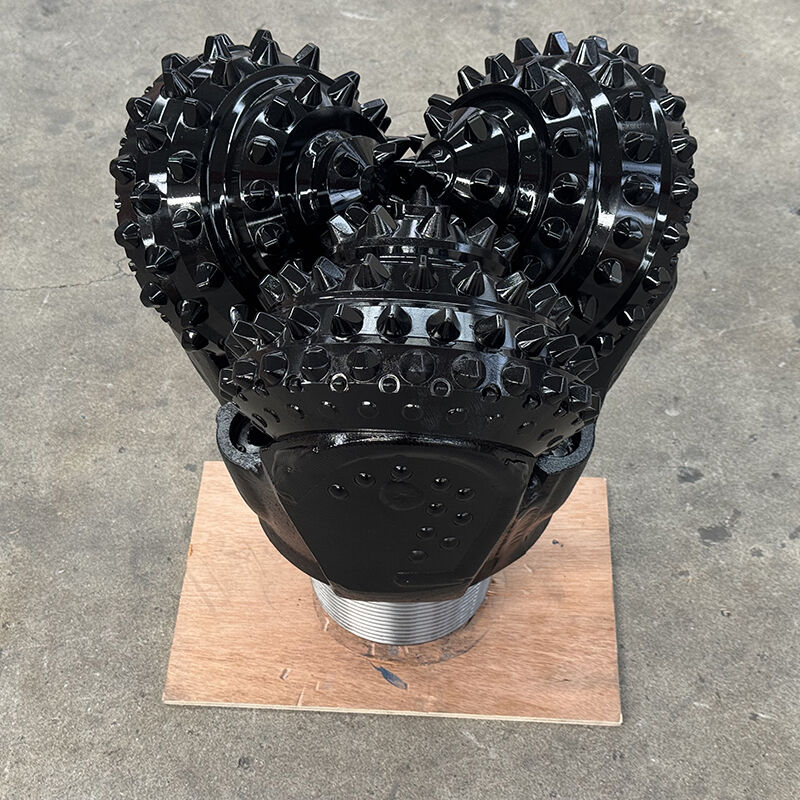

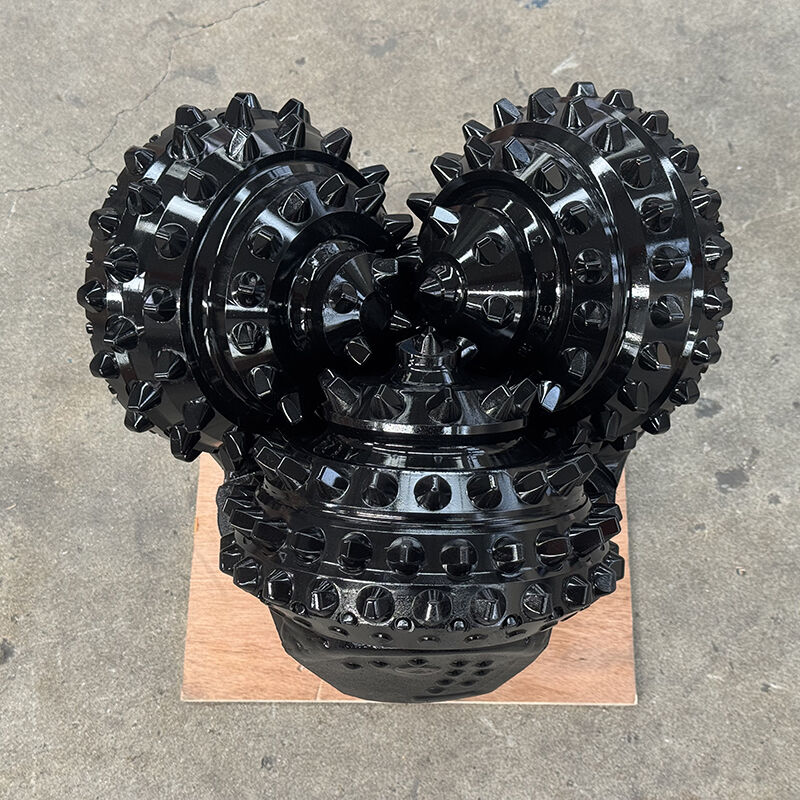

14 3/4”IADC 517 Tri-Cone Bit Tricone Bit Soft Rock Drilling Bits For Water Well Drilling

The three cone drill bit is a widely used core tool in petroleum drilling operations, and its performance directly affects drilling quality, efficiency, and cost. The drill bit structure consists of four main parts: the tooth palm body, the roller body, the bearing system, and the nozzle. According to the type of bearing, it can be divided into two categories: rolling bearings and sliding bearings, and according to the method of tooth fixation, it can be divided into two categories: hobbing and milling. It crushes rocks through the impact crushing effect and sliding shear effect generated by the revolution and rotation of the roller cone, and is suitable for various soft, medium, and hard strata. The International Association of Drilling Contractors (IADC) has developed a three digit coding standard for classification and selection based on tooth type, formation adaptability, and structural characteristics

PRODUCT SPECIFICATIONS
product name	14 3/4”IADC 517 Tri-Cone Bit
model number	CA535
series	CA
tooth type	TCI
connection	6 5/8" Reg PIN
Nozzle	three jet nozzles
application	Mining,water well,oil well,HDD,exploration,etc
weight	78kg
certificate	SY/T5164,ISO9001:2008
RECOMMENDED ROCK FORMATION
medium soft with low compressive strength and harder abrasive stringers,such as shale,hard gypsolyte,soft limestone,sandstone and dolomite with stringers,etc.
RECOMMENDED DRILLING PARAMETERS FOR APPLICATION
Type&IADC code	415	435	445	515,525	535,545	615,625	635,645	735,835
WOB(KN/mm)	0.35~0.90	0.35~0.95	0.35~1.00	0.35~1.05	0.35~1.05	0.35~1.05	0.70~1.20	0.70~1.20
RPM(r/min)	140~70	140~60	140~60	120~50	110~40	80~40	70~40	70~40

Company Profile

Crossing Bit, a leading manufacturer of PDC bits and tricone bits in northern China, has exported its high-quality drill bits to more than 30 countries, demonstrating its strong market influence and exceptional product strength.

Our meticulously designed PDC bits are specifically optimized for directional drilling. With exceptional stability, durability, and "directional" friendliness, they are able to precisely maintain the bit's position in narrow and complex pay zones, ensuring smooth drilling operations.

This unique steerable bit technology, combined with high ROP (rate of penetration), sets Crossing Bit apart from the competition and establishes it as a leader in the industry.
